TTS6080AC Touch Screen Charger by TENRC
Specifications:
Size: 180x145x57mm
Weight: 605g
Input voltage: 11-18.0V DC
Input voltage: 100-240V AC
Charge power: 80W
Charge current range: 0.1~10.0A
Balance current: 450mA
Balance Tolerance : ± 0.01V
Discharge power: 10W
Discharge current range: 0.1~2.0A
NiCd/NiMH battery cell count: 1 - 16cells
LiPo/LiLo/LiFe battery cell count: 1 - 6cells
Pb battery voltage: 2V~20V
Featurs:
Multi-battery Balance Charger/Discharger
3.2 Inch Screen Touch Display
Auto detect battery Type
Auto detect battery Cells
Auto detect battery capacity
USB Interface
Internal resistance measurement
Charge/Discharge Graph
Fully adjustable menu
Cycle Mode
10 Memory
USB Monitor
Dual input power 11-240V
Digital Servo and ESC tester
Warning and error message
Product info:

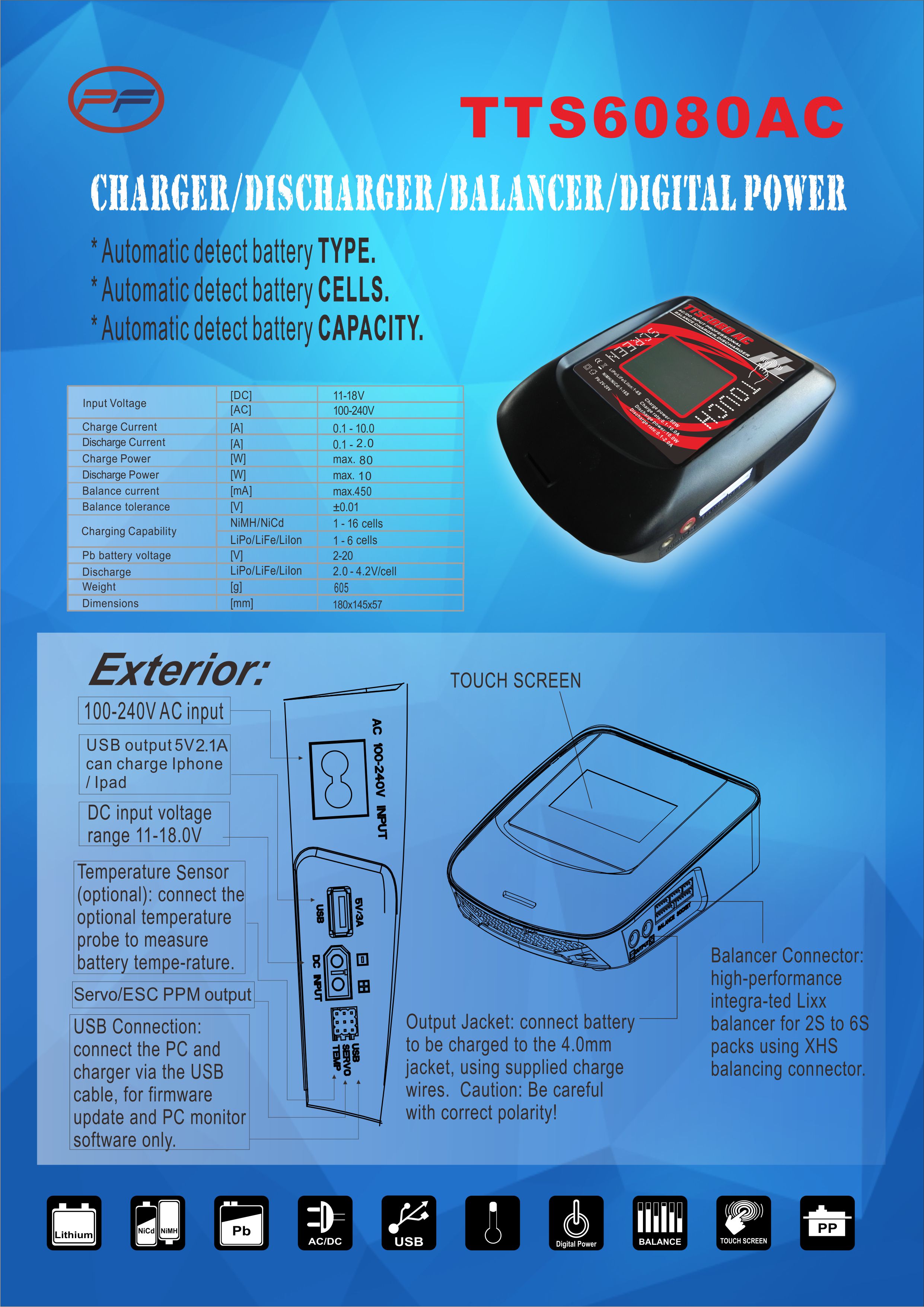

The new TTS-6080 AC / DC balancer charger coming with a 3.2Inch (71x40mm) touch screen, and offers an integrated balancer, battery meter, battery checker and servo tester. Powered by a 100-240V AC city power or 11 to 18V DC external power supply the TTS-6080 features up to 10A charge and 2A discharge current, it can handle up to 6S LiPo and 16 cell NiXX batteries and sports a 5V/1A USB port, and Temp. sensor port. The charger`s firmware is updatable and all charge and discharge parameters can be checked and controlled on your PC or on the Graph on the Screen. The TTS -6080 is for Professional use and measure battery detail information. This has a sensitive Screen-Touch display with a very easy setup menu. It performs up to 80 Watts during fast charging or Balance charging for all kind of batteries with Build-in balance connector for 1-6S Li-Xx batteries. TTS-6080 can give you very detail information about your batteries like Voltage, internal Resistance, Charge and discharge data with Graph (on the screen). The balance charge function can balance and monitor all cells individually while charging and during the discharge process. Inner resistance measure shows the battery life time. An error message will sound and the process will end automatically if the voltage of any single cell is abnormal. "Fast" charge will fully charge a lipoly battery in the shortest time. "Store" setting will charge the battery at approximately a 50% charge for long term storage. B6AC Super has charging programs for LiFe (A123), Li-Ion, LiPo, XXMh and PB battery types include up to 5 batteries’ data storage for easy programming. Out of all these advantages, you will get a Profi Digital servo/ ESC tester all build-in one.
Inclusive:
1 x Hobbyfly TTS6080
1 x 220V EU Input-power cable
1 x 12V Input-power cable
1 x build-in balance connector
