MWC MultiWii SE Standard Edition 4-axis X-mode Flight Control Board QUADX


MWC is MultiWii Copter abbreviation, this open source program´s original author is a French program Alex, after two years of joint efforts of many enthusiasts, and now the MWC program has become increasingly mature, has become very popular abroad, cost-effective flight control one. DIY is not a flight control, but no one can do things, Chris launched the MWC model series of flight control, so that multi-axis aircraft MWC fans can easily access the high cost of this product, through the MWC program to control the hardware platform, can achieve a variety of multi-spindle, high-quality flight results, flexibility can be adjusted into a very stable or very flexible to fit aerial, FPV or stunt flying and many different needs.

With the same program for the open source compared to KK or ACM, MWC´s more stable flight performance, flight skills required for novice lower debugging process more intuitive. Dedicated MWC GUI program can easily observe the PID parameters, flight control signal input / output status, sensor / switch-state, as well as aircraft attitude and heading sensor signal state of each group, sufficient for the initial configuration of the aircraft easier.

MultiWii SE Standard Edition supports the following aircraft models:
GIMBAL -------- PTZ stabilizer independent (non-flight control purposes)
BICOPTER ------ 2-axis aircraft Avatar
Tricopter ----- Y3 (Y-type 3-axis)
QUADP --------- 4-axis + classic mode
QUADX --------- 4-axis × mode
Y4 ------------ Y-type four-axis
Y6 ------------ Y-type 6-axis
HEX6 ---------- 6 axis + mode
HEX6X --------- 6-axis × mode
FLYING WING --- flying wing with a (non-multi-axis machine, the program is in testing phase).

Tool to connect the computer via FTDI, flight mode can be easily converted at any time.

MultiWii SE Standard Edition Hardware configuration:
· ATMEGA328P microcontroller
· ITG3205 three-axis digital gyroscope
· BMA180 triaxial accelerometer
· BMP085 pressure sensor
· HMC5883L axis magnetoresistive sensor (electronic compass)

MWC above the mainstream hardware platform with a combination of commonly used, which is equivalent to Arduino Pro Mini and FFIMU 0.35 9DOF IMU sensor combined, integrated design makes working more stable flight control.

MWC SE in addition to the necessary input / output ports, but also allow a variety of expansion interfaces, can be used for OSD module, LCD liquid crystal module, Bluetooth module, the data transmission module, GPS module, satellite receiver, 3-axis head and other equipment connection. With Chris MWC LCD module, outside the field can easily adjust the PID parameters, no longer need to carry a laptop computer.

Purchase MWC SE Standard Edition flight control friends, we will provide a detailed electronic manual, guide you to complete the set and enjoy the fun of flying!

MultiWii SE

This is RTF multiwii controller.

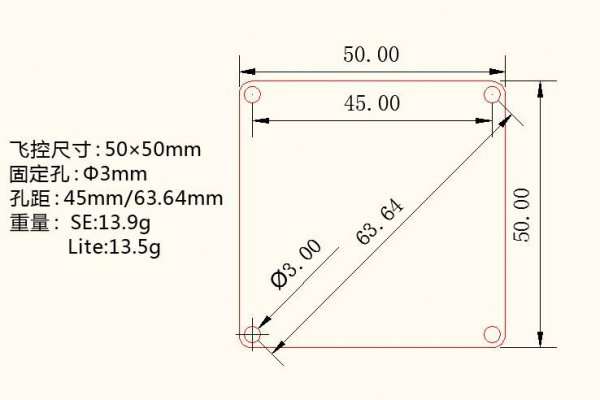

·Dimensions 50 mm X 50 mm
·Standard Mk style mounting holes 45mm X 45mm
·Weigh 13.9g
·SMD component design with atmega328P
·ITG3205 TRIPLE AXIS GYRO, BMA180 ACCELEROMETER, BMP085 BAROMETER, HMC5883L MAGNETOMETER
·Design with servo output for Camera Pitch and Roll
·Separate 3.3v regulated supply for the sensors
·On board logic level converter
·All the out puts are labelled for easy identification

You can use FTDI Basic for easy programming.

Main links & info:

The main website of the owner of the MultiWii project is www.multiwii.com.
The main RC groups thread where all discussions are held can be found here.
Kinderkram & Blue Angel have made excellent build logs! They are available here and here.
Another very good post for initial set-up and basic questions from Shikra can be found here.

The source code can be found on the google code repository here.
You can use FTDI Basic for easy programming.

Usefull links: (ลิงค์ข้างล่างเป็นลิงค์ต่างๆที่สำหรับใช้งาน MutiWii ทุกรุ่นค่ะ)

1. MWC latest  version of the  program, with the  corresponding GUI setup  program:http://code.google.com/p/multiwii/downloads/list
2. Arduino edit  and upload an  essential tool for program: http://arduino.googlecode.com/files/arduino-0023.zip
3. FTDI USB to  TTL-driven tools:http://www.ftdichip.com/Drivers/CDM/CDM20814_WHQL_Certified.zip
4. Arduino and MWC configuration procedures  are required to  support JAVA  virtual machinecan  visit the official  website to download JAVA:  http://www.java.com
5. RCGruop forum,  please post on  the MWC favorites, latest  news and updates are posted  here, you can learn many things      http://www.rcgroups.com/forums/showthread.php?t=1340771
6. MWC official  website, DIY guides, FAQ and Forum:http://www.multiwii.com

7.Windows  32/64 bit Driver :http://www.ftdichip.com/Drivers/CDM/CDM20814_WHQL_Certified.zip

8.Arduino 0023: http://arduino.googlecode.com/files/arduino-0023.zip
9.MWC the   latest version of firmware and   configuration procedures: http://code.google.com/p/multiwii/downloads/list
